Construction & Materials
A spiral of metal and filler, welded to hold
V-Shaped Metal Winding
Alternating plies of formed V-profile metal strip and soft filler, wound into a spiral and resistance-welded at the start and finish, so the gasket flexes with the flange instead of fighting it.
Metal Options
304, 316, and 321 stainless as standard; Monel, Inconel, and titanium available for corrosive or high-temperature service.
Filler Options
Flexible graphite for general and high-temp service, PTFE where chemical resistance matters more than temperature, mica for extreme heat.

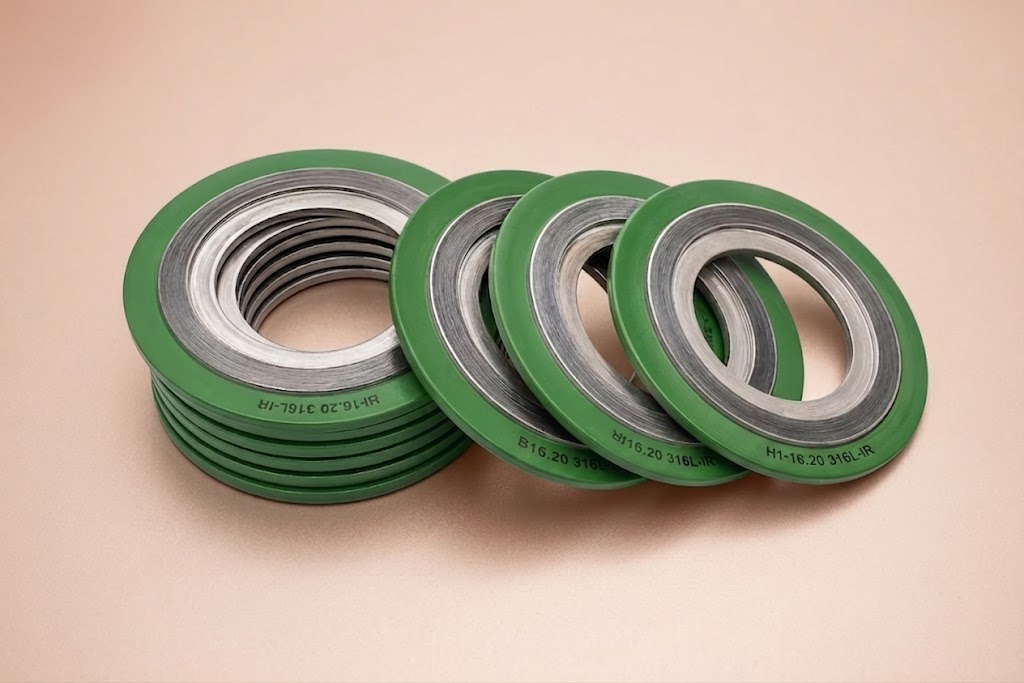

Centering Rings
Available wound-only (CR), with an outer ring (CG), an inner ring (CRIR), or both (CGI) — the ring you need depends on the flange, not the price.
Standards
Recognized wherever you're bolting up
ASME B16.29
ASME B16.5
API 601
API 607
DIN EN 1514-2
JIS B2404
Where It's Used
The joints that can't afford to leak
Refineries & petrochemical
Power generation
Offshore & marine
High-pressure steam
Chemical processing
Available Styles
Ring type and jacket, matched to your flange
Style CR

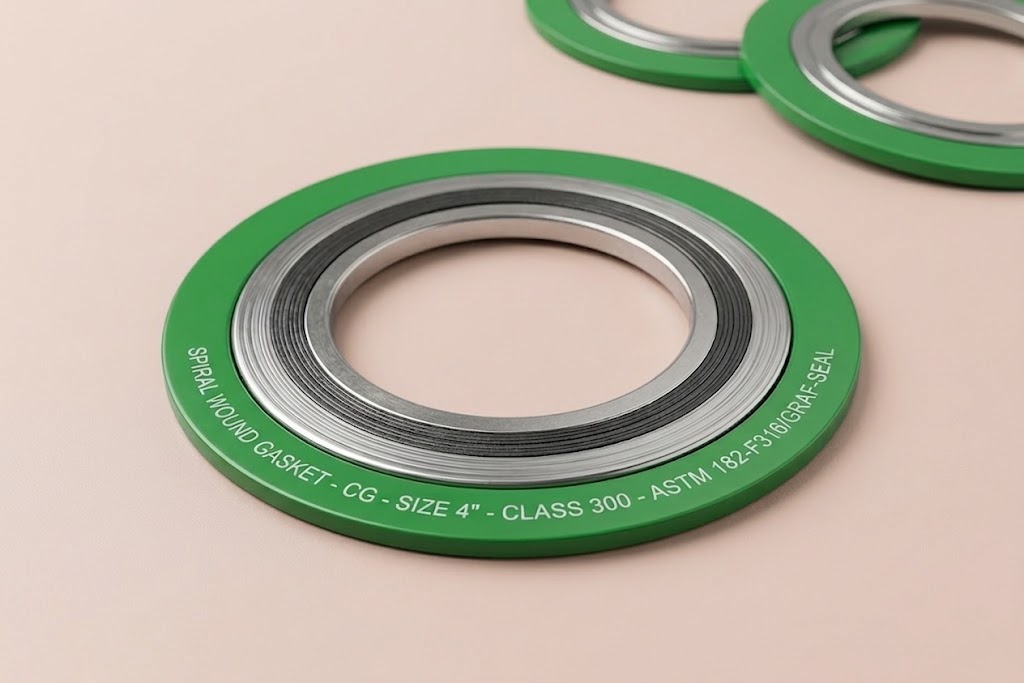

Style CG
Style CRIR
Style CGI
R & RIR Ring
Single Jacketed
Double Jacketed
Heat Exchanger
Manhole
